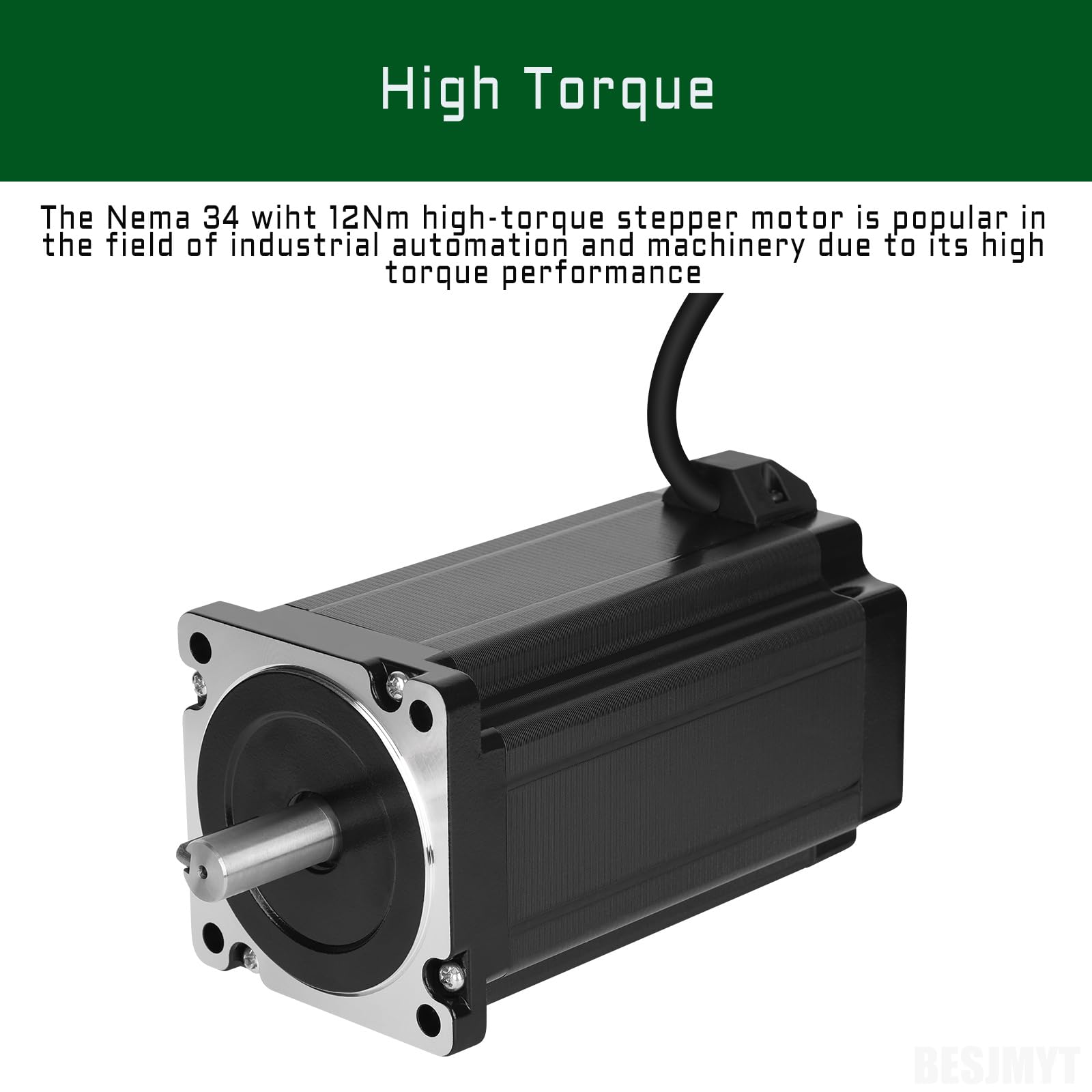

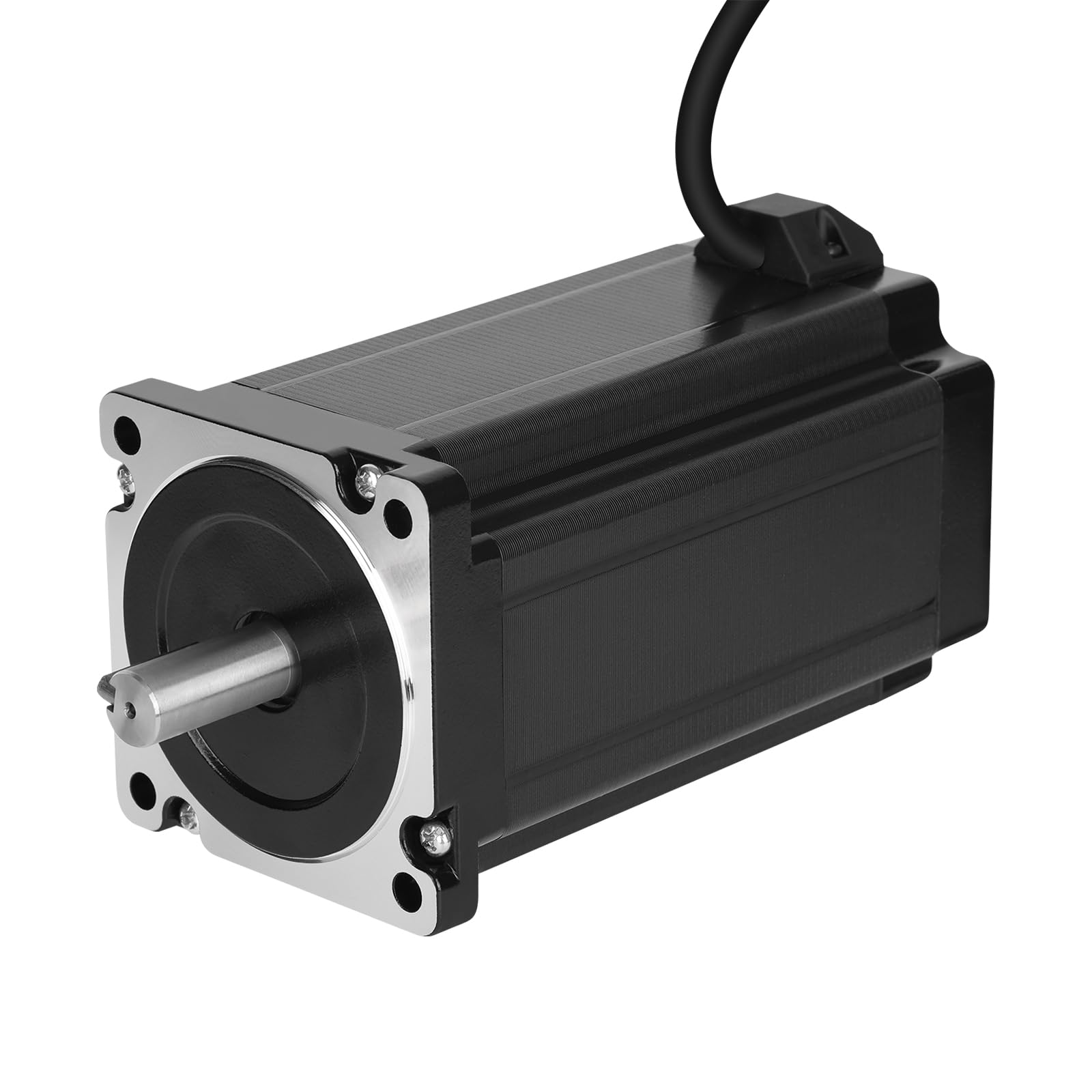

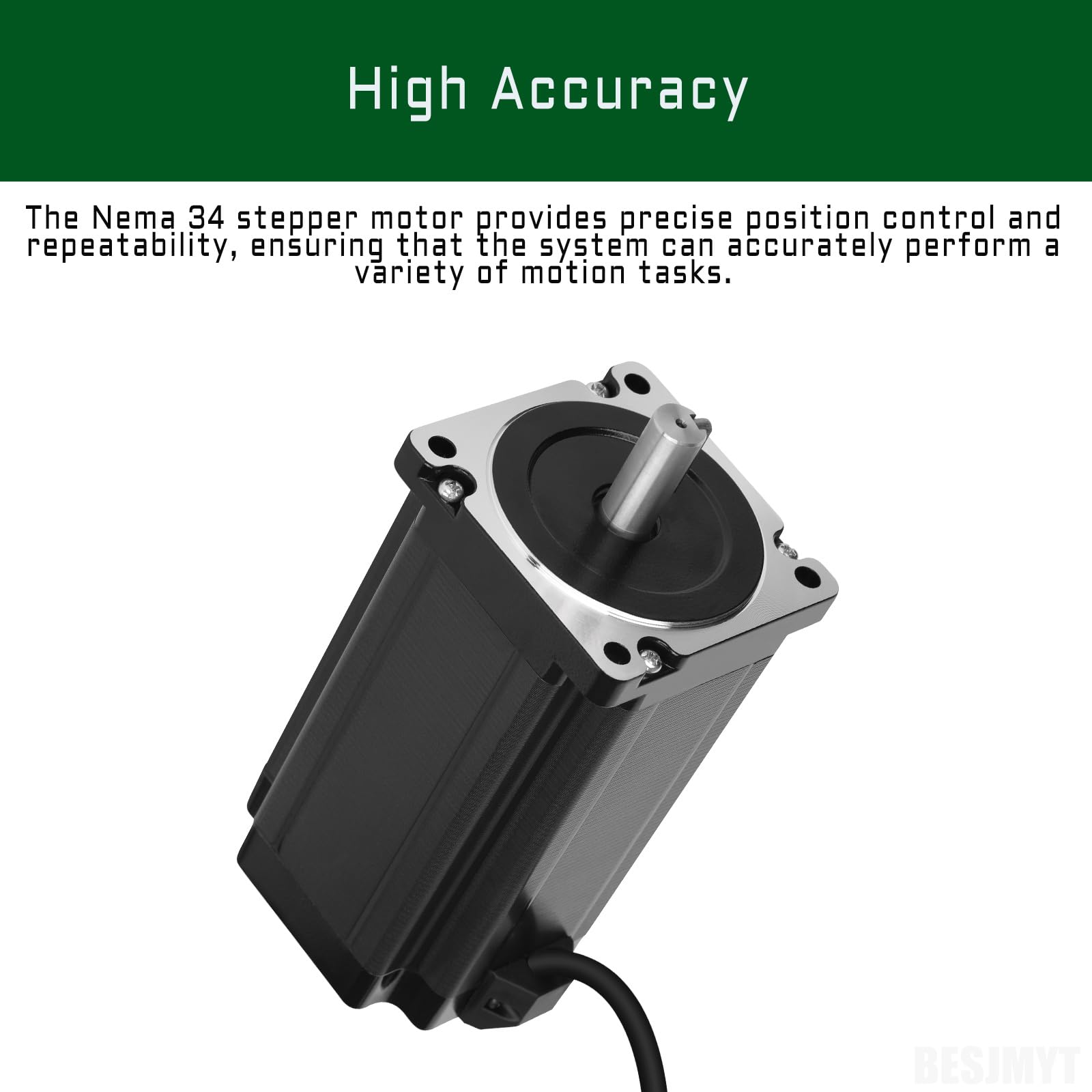

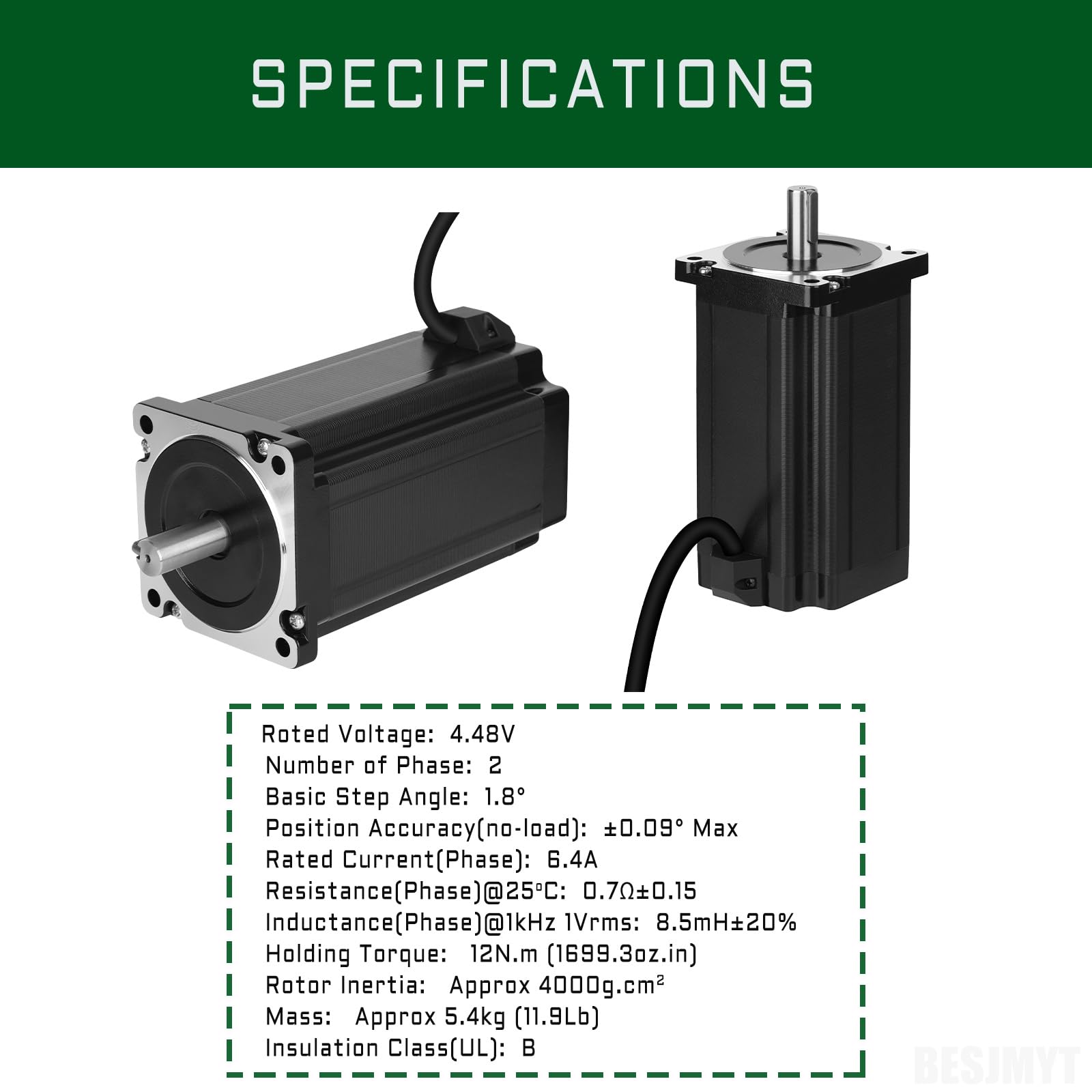

NEMA 34 STEPPER MOTOR FOR 3D PRINTER CNC MILLING ENGRAVING MACHINE The Nema 34 stepper motor is renowned for its high torque output, making it suitable for applications requiring large loads or high torque. This makes it an ideal choice for CNC machining, printing machinery, aerospace, automotive, and medical equipment. They are commonly used in applications that demand precise positioning and motion control. The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. PRODUCT SPECIFICATIONS Frame Size 86 x 86mm Body Length 149mm/5.86inch Shaft Length 32mm Motor Type Bipolar Stepper Number of Leads 4 Step Angle 1.8 degree Rated Voltage 4.48V Rated Current 6.4A Phase Resistance 0.7Ω Phase Inductance 8.5mH Holding Togque 12Nm (1699.34oz.in) Rotor Inertia 4000g.cm² NEMA 34 STEPPER MOTOR Nema34 Stepper Motor149mm Add to Cart Nema34 StepperMotor77.5mm Add to Cart Nema34StepperMotor116.5mm Buying Options Nema17 Stepper Motor-38mm Add to Cart Nema17 Stepper Motor-59mm Buying Options Nema23 Stepper Motor-76mm Add to Cart Nema23 Stepper Motor110mm Buying Options Customer Reviews — — — — 4.3 out of 5 stars 9 4.8 out of 5 stars 5 4.8 out of 5 stars 5 Price $91.10$91.10 $52.21$52.21 $62.98$62.98 $8.32$8.32 $19.99$19.99 $31.10$31.10 $38.99$38.99 Holding Togque 12Nm (1699.34oz.in) 4.7Nm (665.57oz.in) 10Nm (1416.11oz.in) 0.28Nm (39.65oz.in) 760mNm (107.62oz.in) 2300mNm (325.70oz.in) 3300mNm (467.31oz.in) Voltage 4.48V 2.1V 3.6V 2.86V DC 2.73V 2.52V 4.2V Rated Current 6.4A 6A 6A 1.3A 2.1A 4.2A 4.2A Phase Resistance 0.7Ω 0.35Ω 0.6Ω 2.2Ω 1.3Ω 0.6Ω 1Ω Weight 5.4kg 2.3kg 4kg 242g 460g 1kg 1.9kg Bipolar ✔ ✔ ✔ ✔ ✔ ✔ ✔ 1.8 Degree ✔ ✔ ✔ ✔ ✔ ✔ ✔ What are some common applications of Nema 34 stepper motors? Nema 34 stepper motors find widespread use in applications such as CNC routers, laser cutters, engraving machines, packaging equipment, and industrial automation systems. What are the key characteristics of the Nema 34 stepper motors? They are known for large size, high torque output, and robust construction. They typically have a step angle of 1.8 degrees and offer precise positioning control, making them ideal for applications requiring accuracy and strength. What functionalities make the Nema 34 stepper motors suitable for industrial applications? They offer precise control over position and speed, making them ideal for industrial automation tasks such as CNC machining, and 3D printing. Their high torque output ensures smooth and accurate motion even in demanding environments. Can the Nema 34 stepper motors be integrated with motion control systems? Yes, Nema 34 stepper motors are compatible with various motion control systems, including microcontrollers, PLCs (Programmable Logic Controllers), and specialized motion controllers.
