Description
Product Features

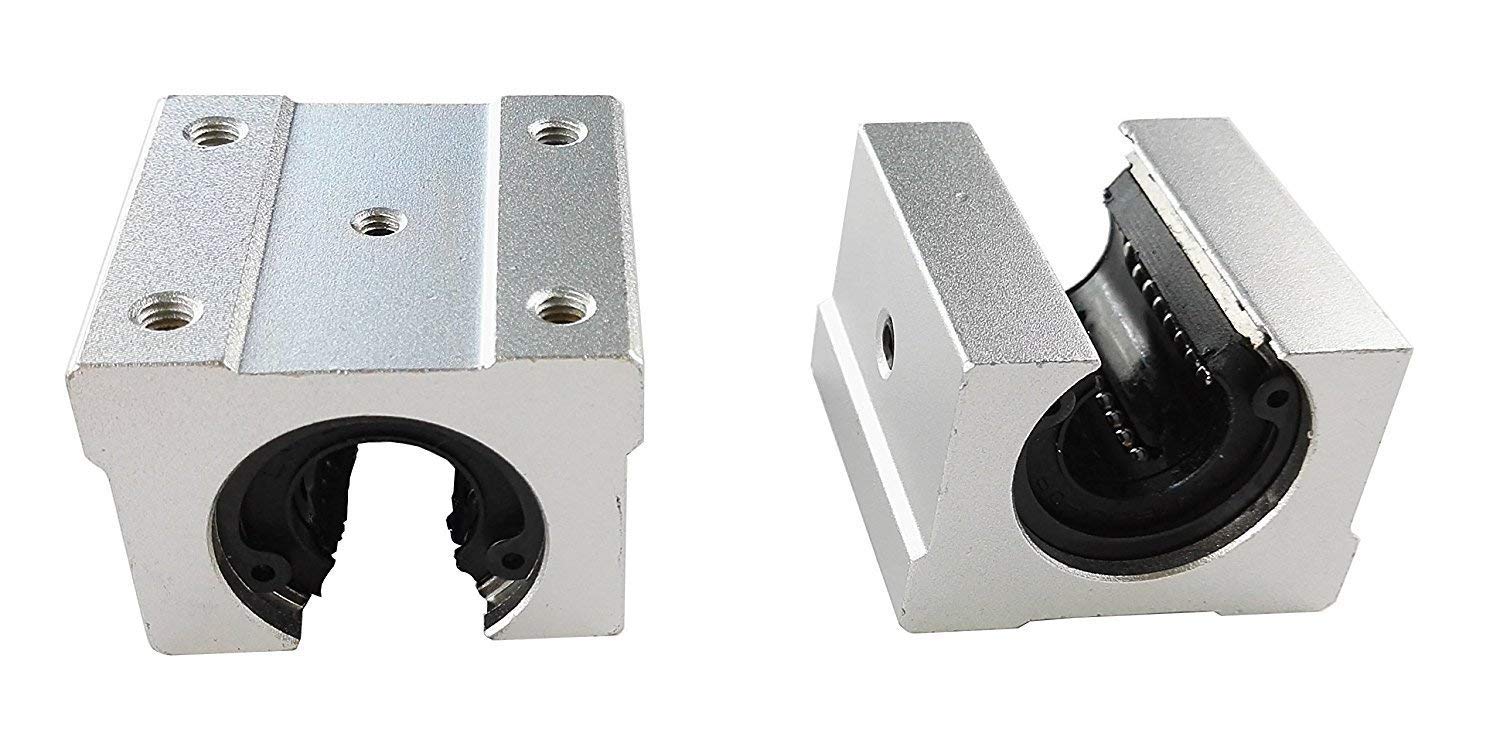

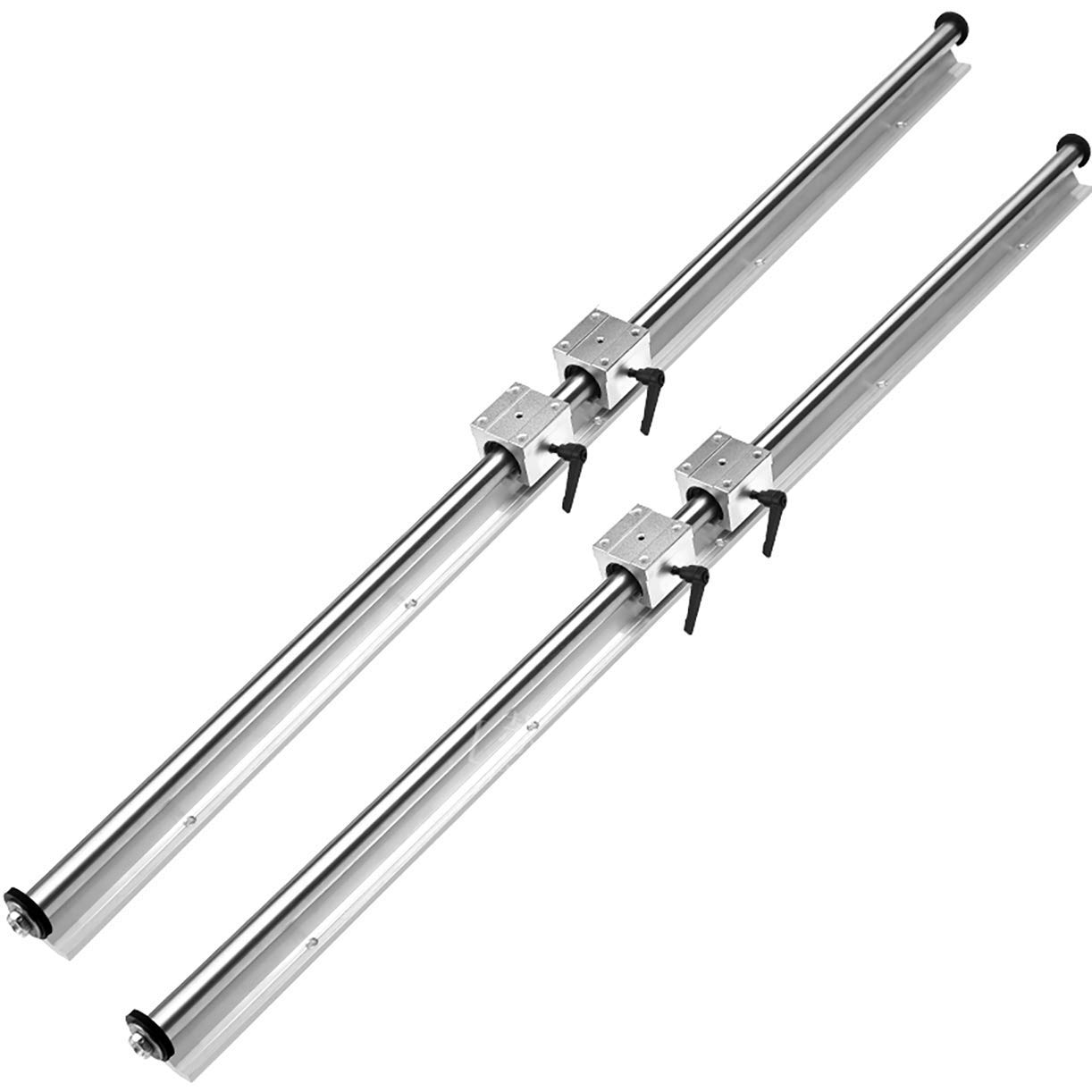

This linear rail kit includes 4Pcs 33.86 inch / 860mm length linear rail shafts, shaft diameter 0.79 inch/ 20mm and 8Pcs SBR20UU slider blocks

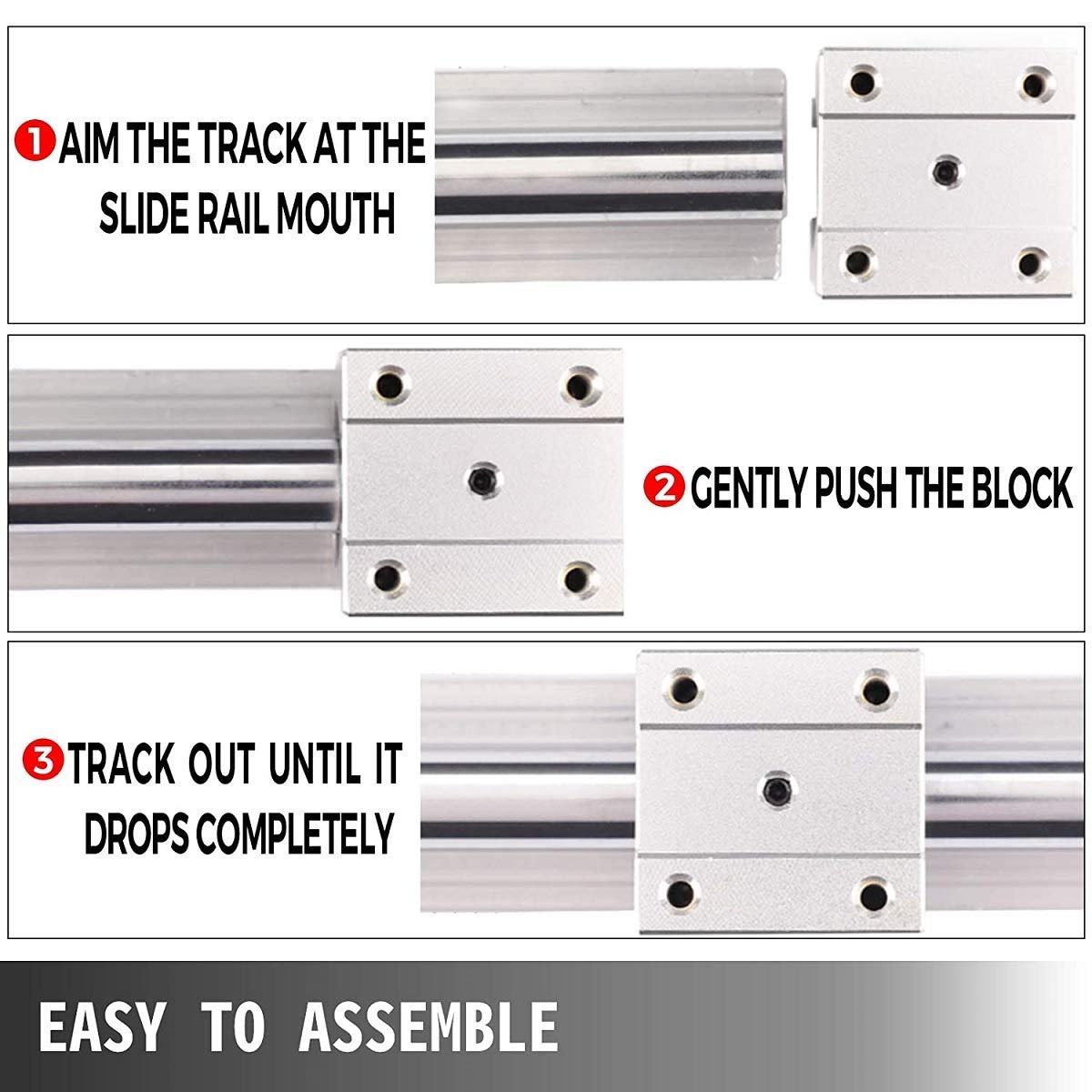

We provide customization, including the rail length, End stops which avoid the blocks sliding off the end of the rail, and the Handle which used to adjust the tightness of the slider block, you can see the real object of the retaining ring and handle in the 2nd image. You can let us know your need through Amazon Message

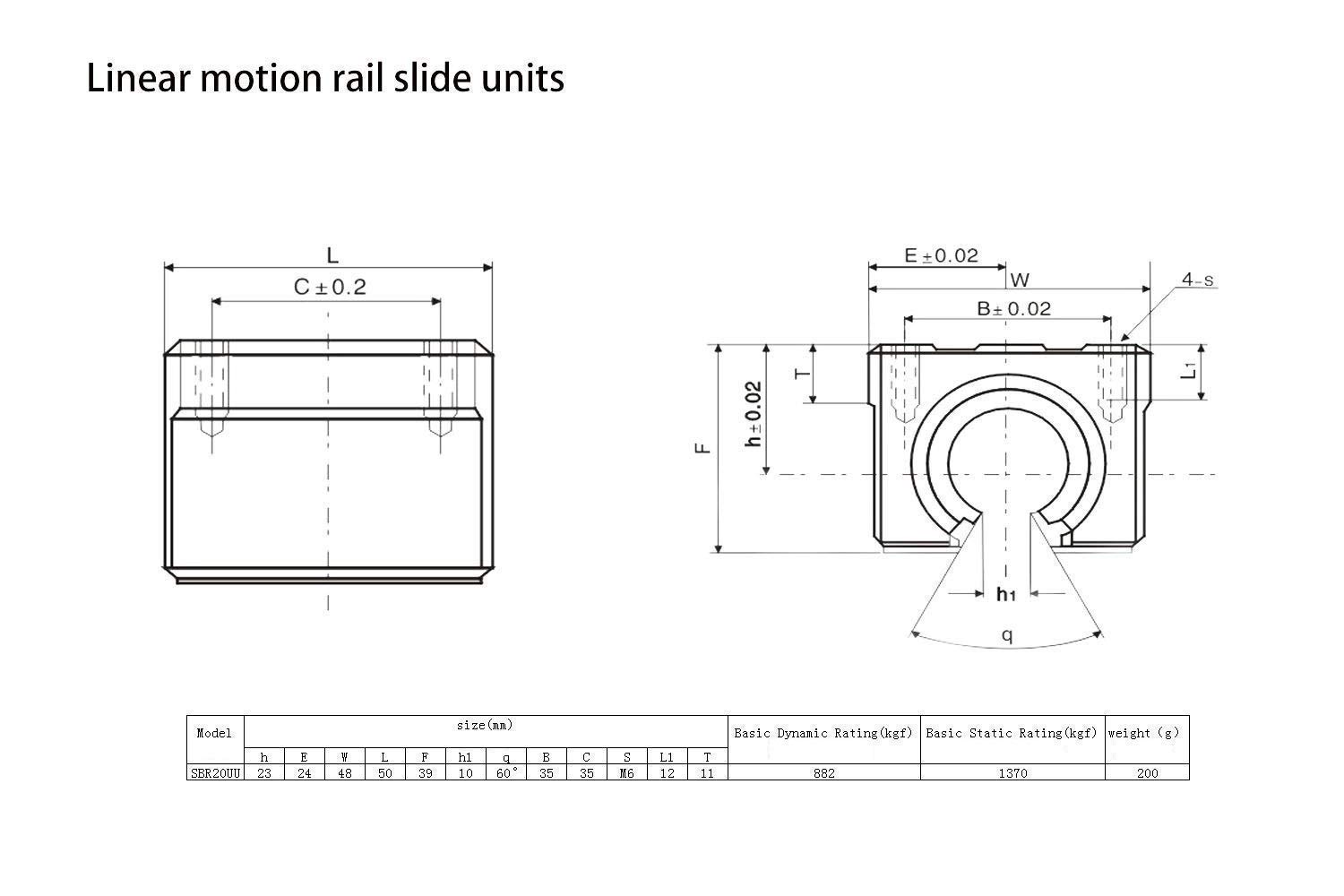

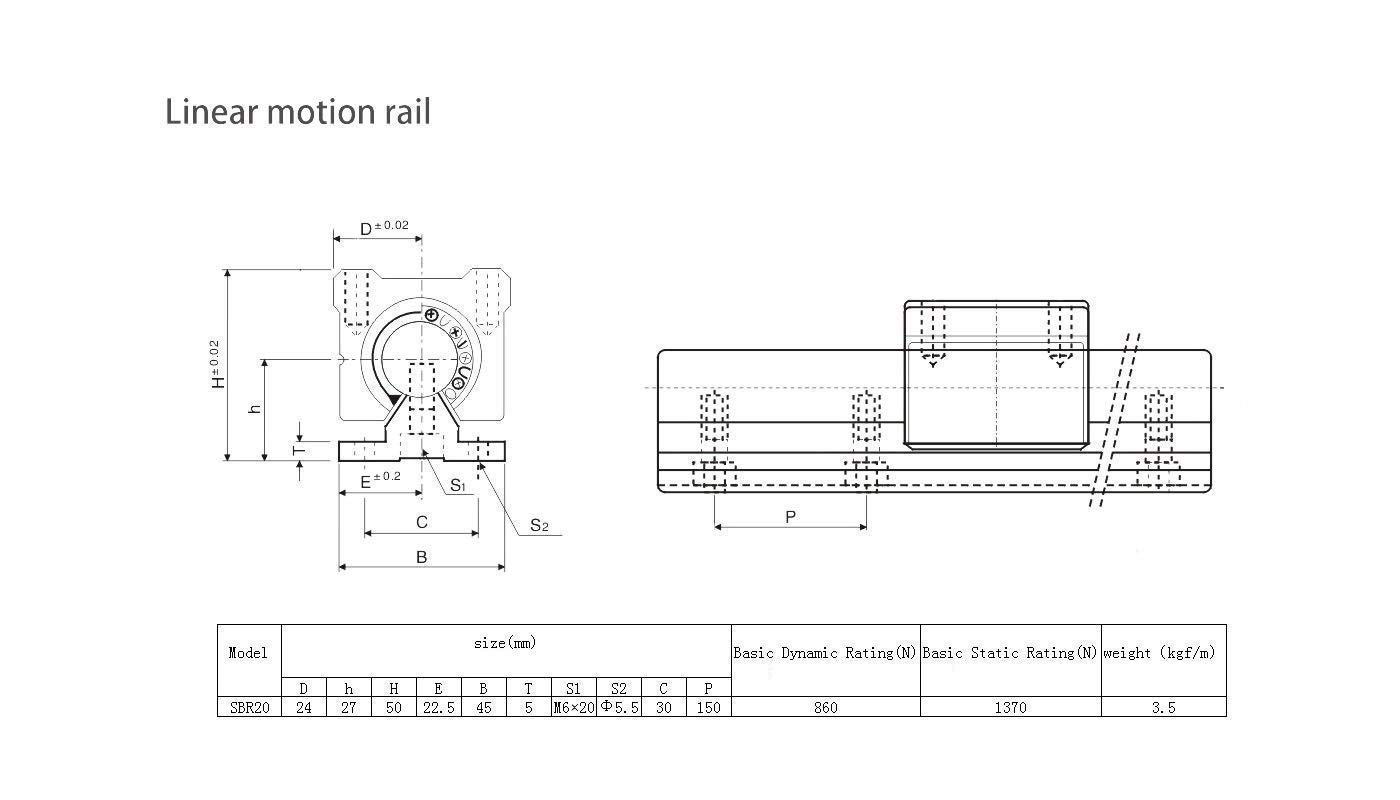

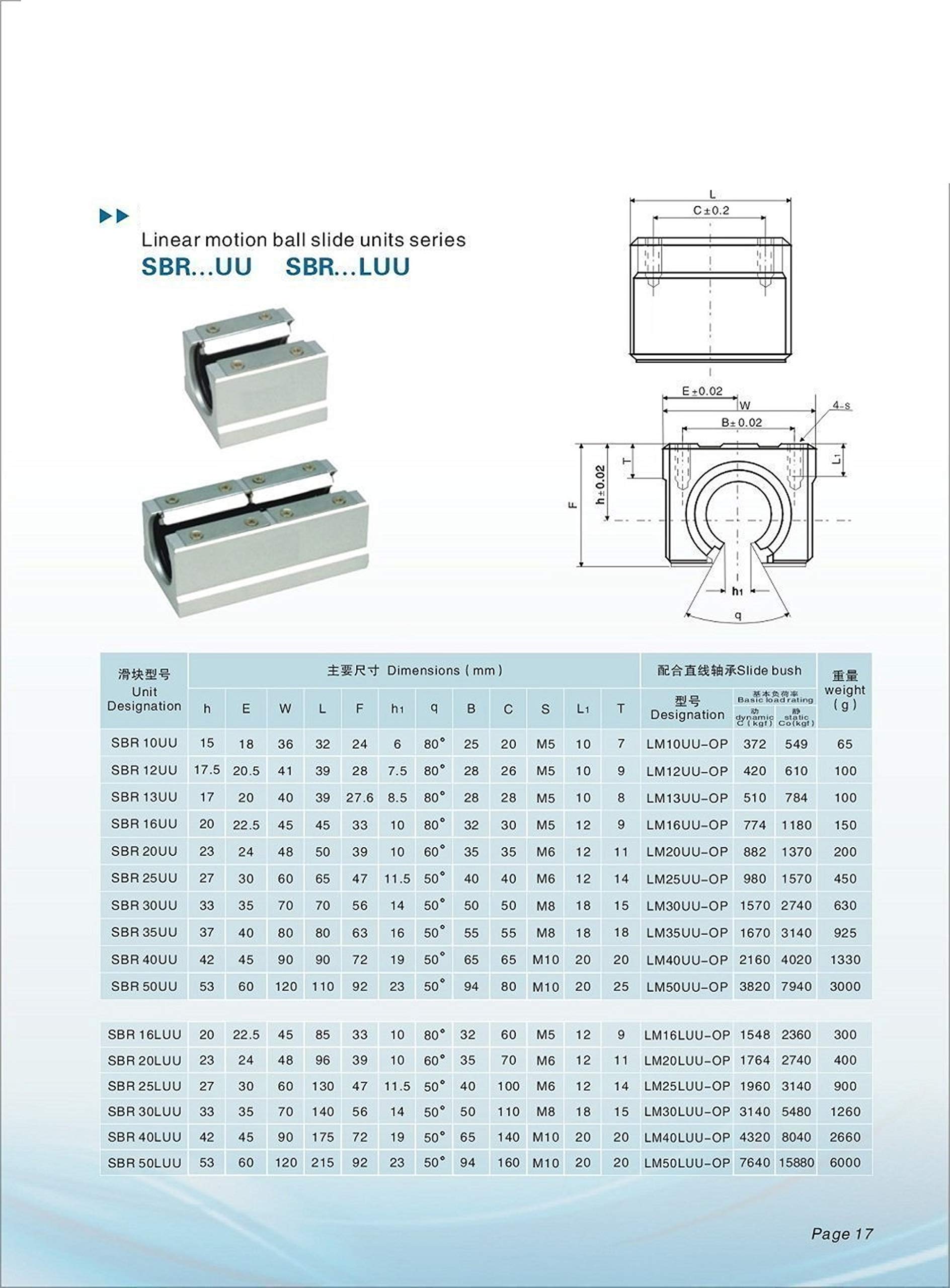

The maximum weight of single SBR20 UU slider block can carry is 198.2lbs, 4Pcs SBR20 UU slider blocks are 793lbs. You can get more technical data from the images

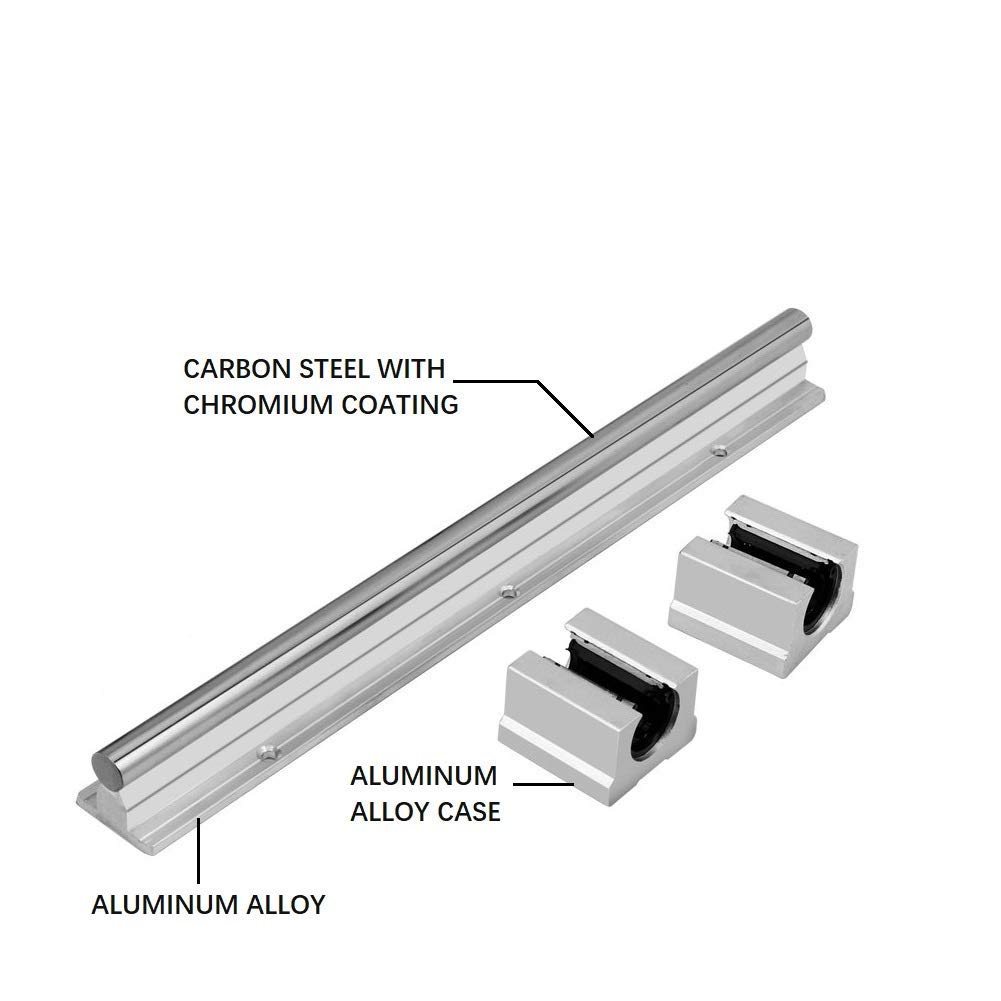

The material of shaft is the Carbon Steel with Chromium coating, quenching and anti-rust treatment; high hardness, more durable. Industrial-grade standard SBR block, with a high precision linear bearing inside. Make the sliding smooth, low friction, silent operation
WARRANTY Within 3 months receiving the linear rail, if there is any problem except for damage caused by man-made or improper operation, with the premise of choosing the proper product model and ensuring the working environment well ventilated and tidily, we will send new linear rail for free or give a total refund. What you need to do is to message us through Amazon
