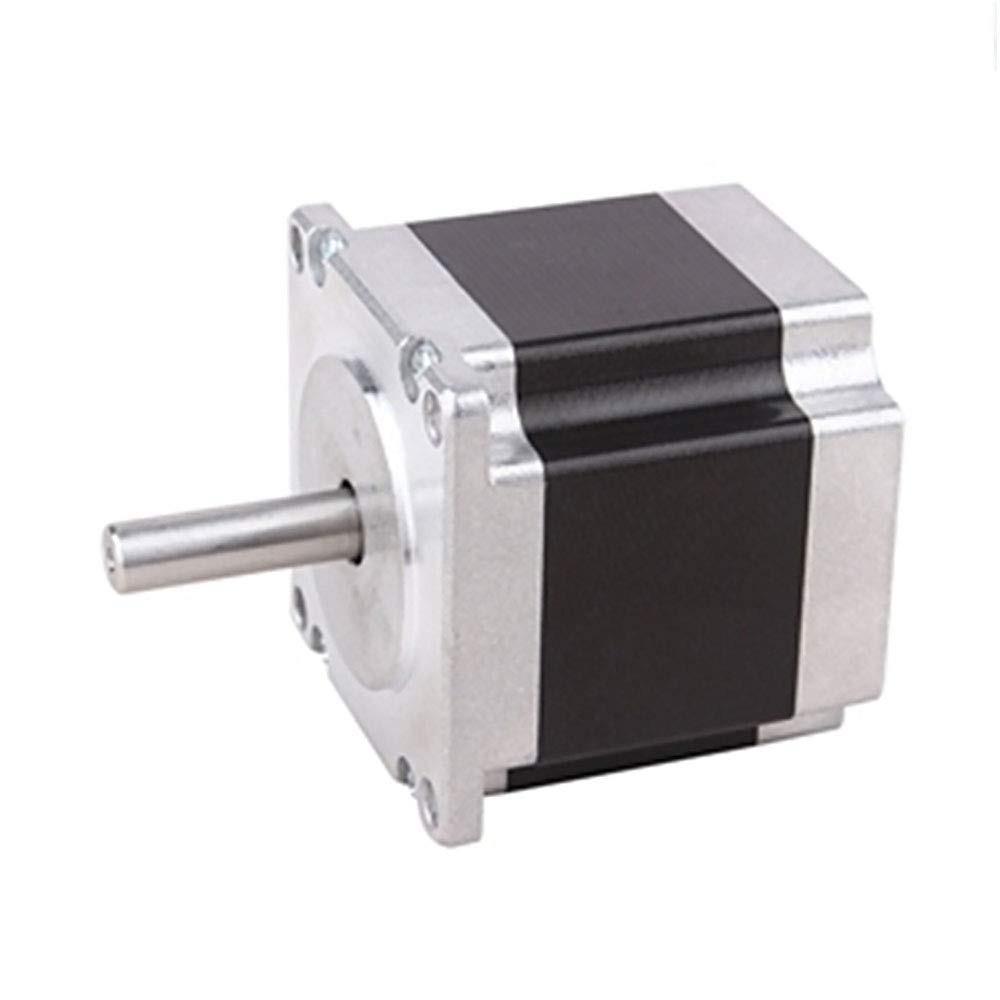

ATO Nema 23 Stepper Motor 1.8 Degree 2.8A/4.2A 2 Phase 4 Wires Digital Stepping Motor for CNC Router Engraving Milling 3D Printer - Perfect for DIY CNC Machines Robotics Automation Projects
$73.19
$133.09
Safe 45%
ATO Nema 23 Stepper Motor 1.8 Degree 2.8A/4.2A 2 Phase 4 Wires Digital Stepping Motor for CNC Router Engraving Milling 3D Printer - Perfect for DIY CNC Machines Robotics Automation Projects
$73.19
$133.09
45% Off
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
14 people viewing this product right now!
SKU: 29843846
Guranteed safe checkout
Description

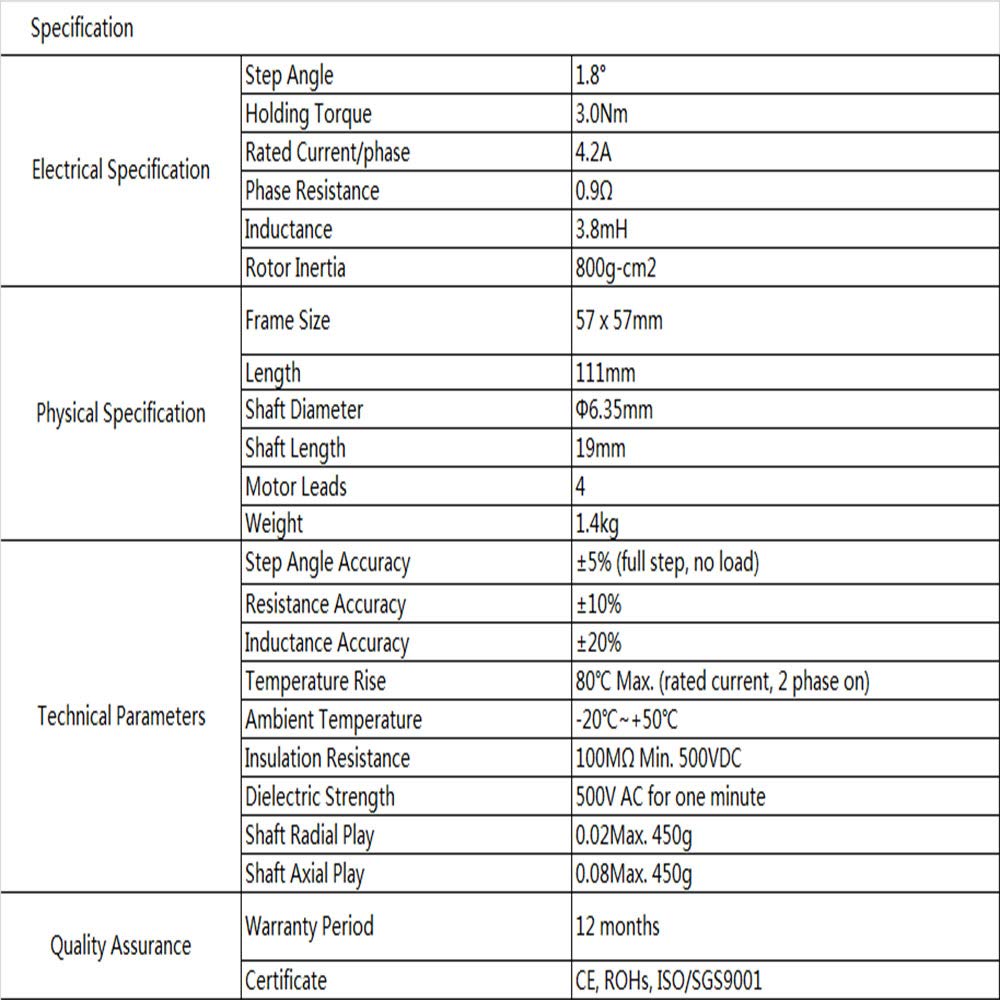

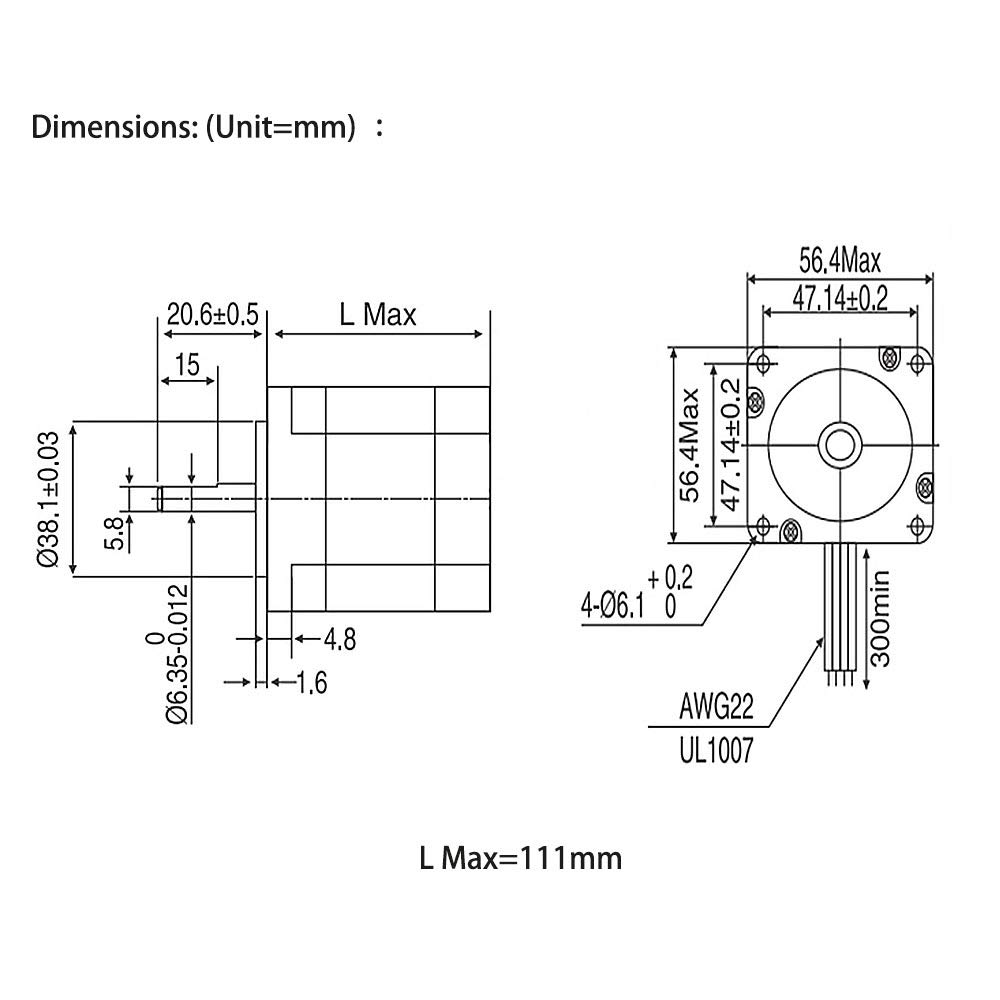

ATO 2-phase 4-wire Nema 23 stepper motor,with 1.8 deg. step angle(200 steps/revolution). Each phase draws current2.8A/4.2A , allowing for a holding torque of 1.26Nm/3.0Nm.Specification : Electrical Specification :Step Angle 1.8°Holding Torque 1.26Nm/3.0NmRated Current/phase 2.8A/4.2APhase Resistance 0.9ΩInductance 2.5mH/3.8mHRotor Inertia 280g-cm2/800g-cm2Physical Specification : Frame Size 57x 57mmLength 56mm/111mmShaft Diameter Φ6.35mmShaft Length 19mmMotor Leads 4Weight 0.68kg/1.4kgTechnical Parameters :Step Angle Accuracy ±5% (full step, no load)Resistance Accuracy ±10%Inductance Accuracy ±20%Temperature Rise 80℃ Max. (rated current, 2 phase on)Ambient Temperature -20℃~+50℃Insulation Resistance 100MΩ Min. 500VDCDielectric Strength 500V AC for one minuteShaft Radial Play 0.02Max. 450gShaft Axial Play 0.08Max. 450gQuality Assurance :Warranty Period 12 monthsCertificate CE,ROHs, ISO/SGS9001
More
Product Features
Holding Torque1.26Nm/3.0Nm
Holding Torque1.26Nm/3.0Nm
Phase Resistance0.9Ω
Application CNC Router Engraving Milling/3D Printer, Lazer, Textile machine
【Customer First 】You will be enjoyed to get free tech support on how to choose, how to wire, how to commissioning with ATO professional engineers. If you have any issue about the product or service, please don't hesitate to consult us
